The Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.



Features

• Protects the battery against excessive discharge and can be used as a system on/off switch.
• 12/24V auto ranging.
• Bluetooth: programming made easy.
• A special setting for Li-ion batteries.
• Ultra-low current consumption.
• Over voltage protection.
• Ignition proof.
• Delayed alarm output.
• Delayed load disconnect and delayed reconnect.

Technical Specifications

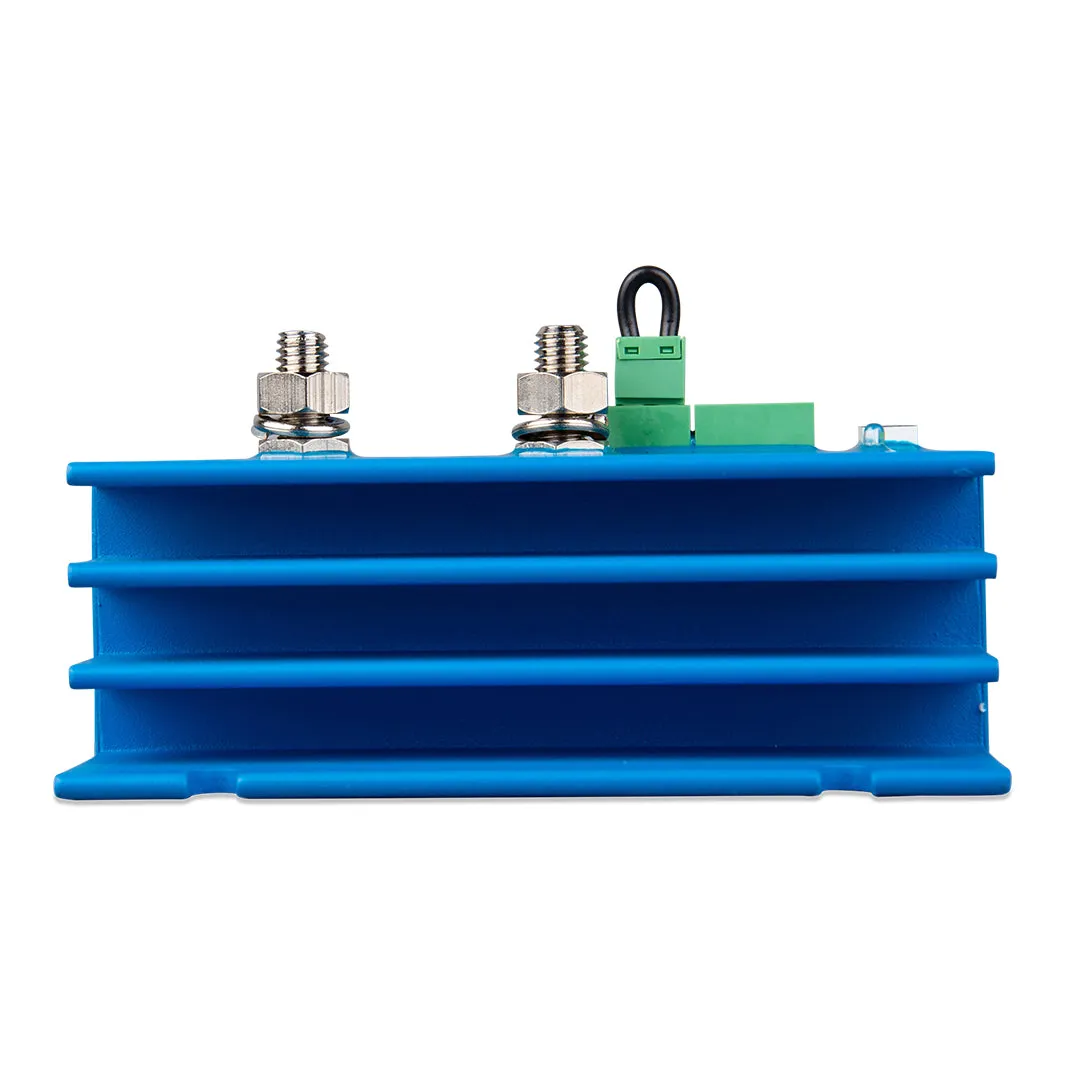

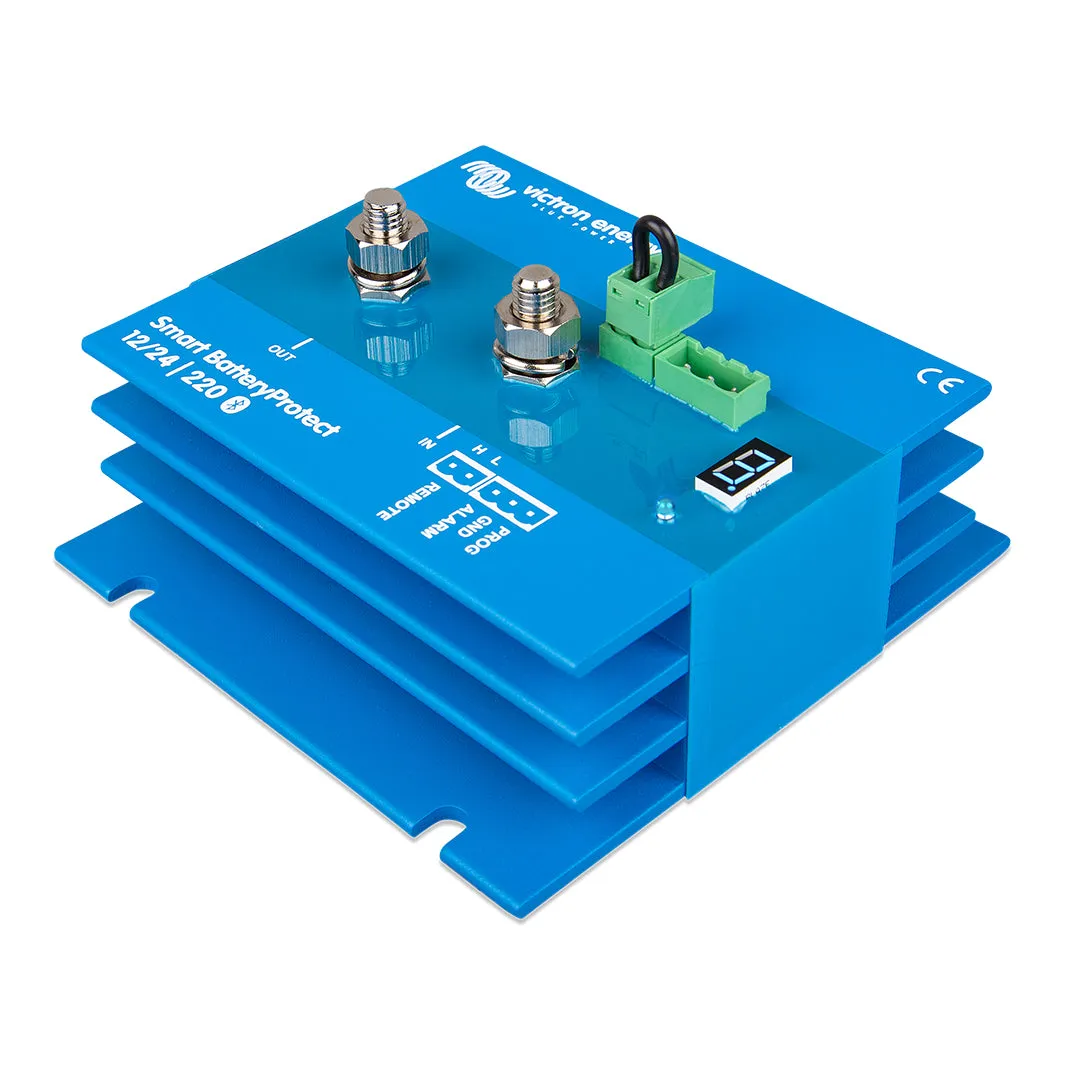

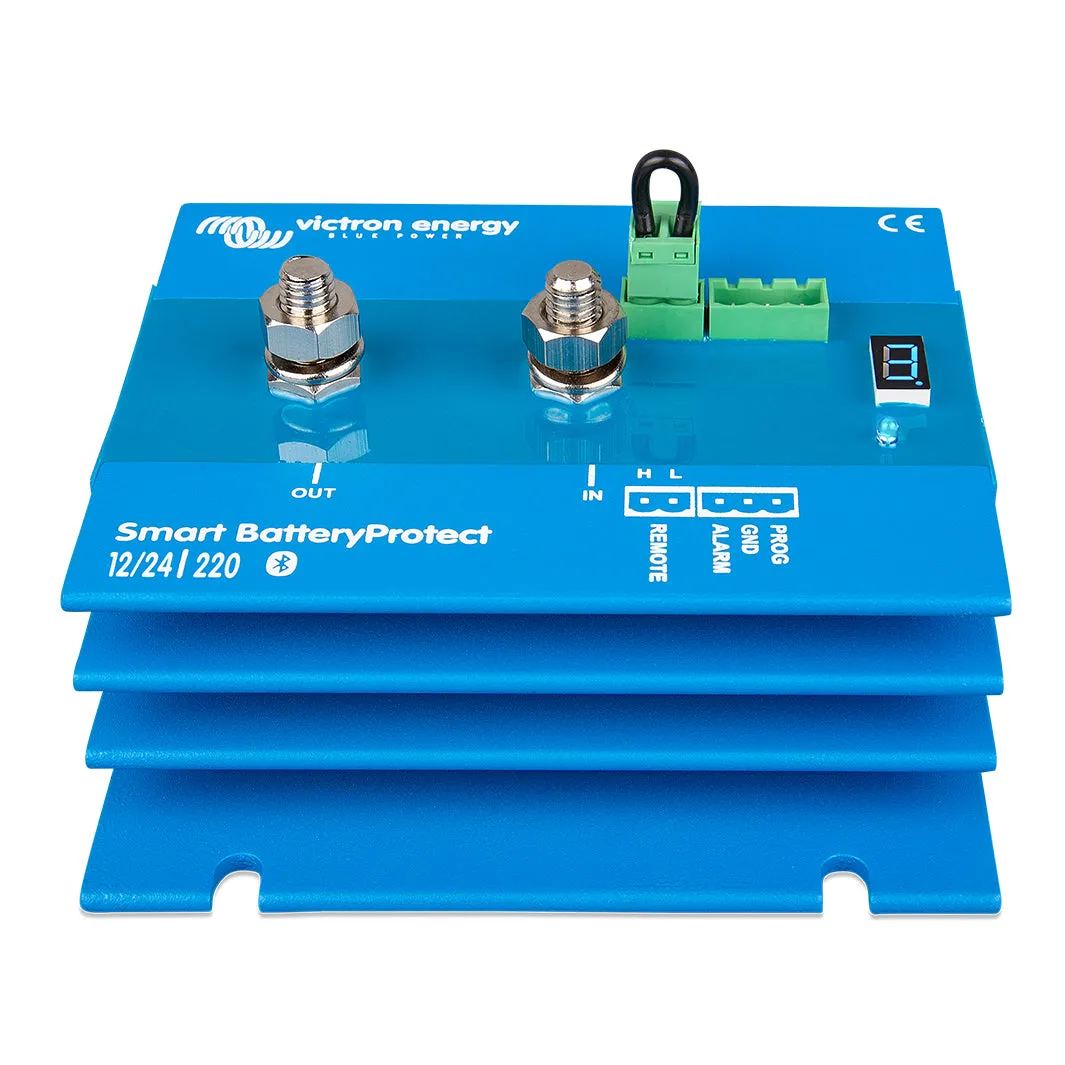

• Smart BatteryProtect - Smart BP-220.
• Maximum continuous load current: 220A.
• Peak current (during 30 seconds): 600A.
• Operating voltage range: 6 –35V.
• Current consumption BLE On When on: 1,4 mA When off or low voltage shutdown: 0,9 mA.
• Current consumption BLE Off When on: 1,2 mA When off or low voltage shutdown: 0,7 mA.
• Alarm output delay: 12 seconds.
• Maximum load on alarm output: 50 mA (short circuit proof).
• Load disconnect delay: 90 seconds (immediate if triggered by the VE.Bus BMS).
• Load reconnect delay: 30 seconds.
• Default thresholds: Disengage: 10,5V or 21V Engage: 12V or 24V.
• Operating temperature range: Full load: -40°C to 40°C (up to 60% of nominal load at 50°C).
• IP rating Electronics: IP67 (potted) Connections: IP00.
• Connection: M8.
• Mounting Torque: 9 Nm.
• Weight: 0,8 kg.
• Dimensions (hxwxd): 62 x 123 x 120 mm.

* The BatteryProtect is not designed for reverse currents from charging sources
