Features

• 12/24V auto ranging.
• Programming made easy.
• A special setting for Li-ion batteries.
• Note: the BatteryProtect can also be used as a charge interrupter in between a battery charger and a Li-ion.
• Ultra-low current consumption.
• Over voltage protection.
• Ignition proof.
• Delayed alarm output.
• Delayed load disconnects and delayed reconnect.

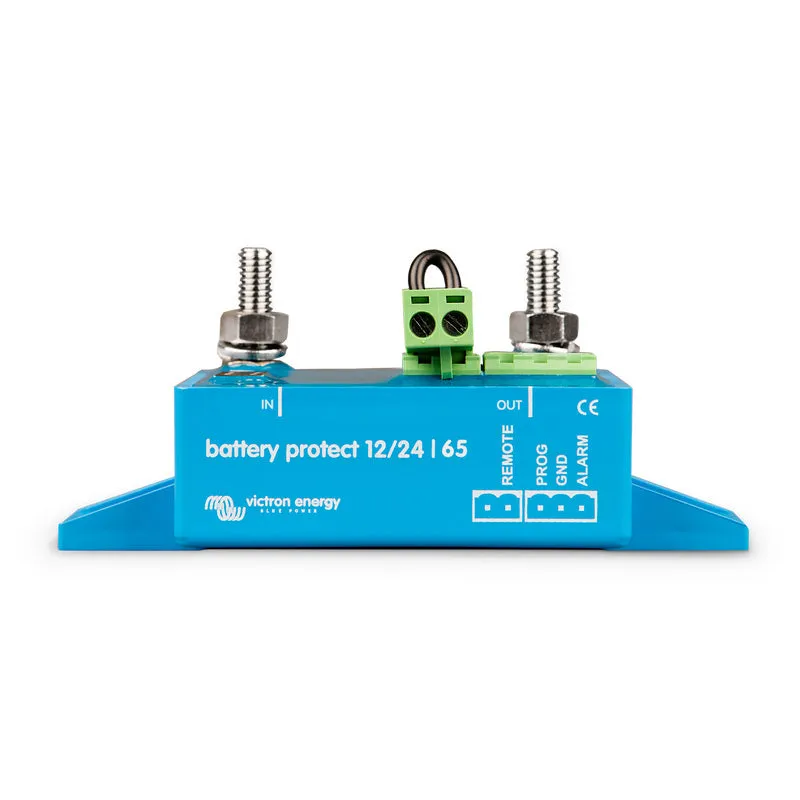

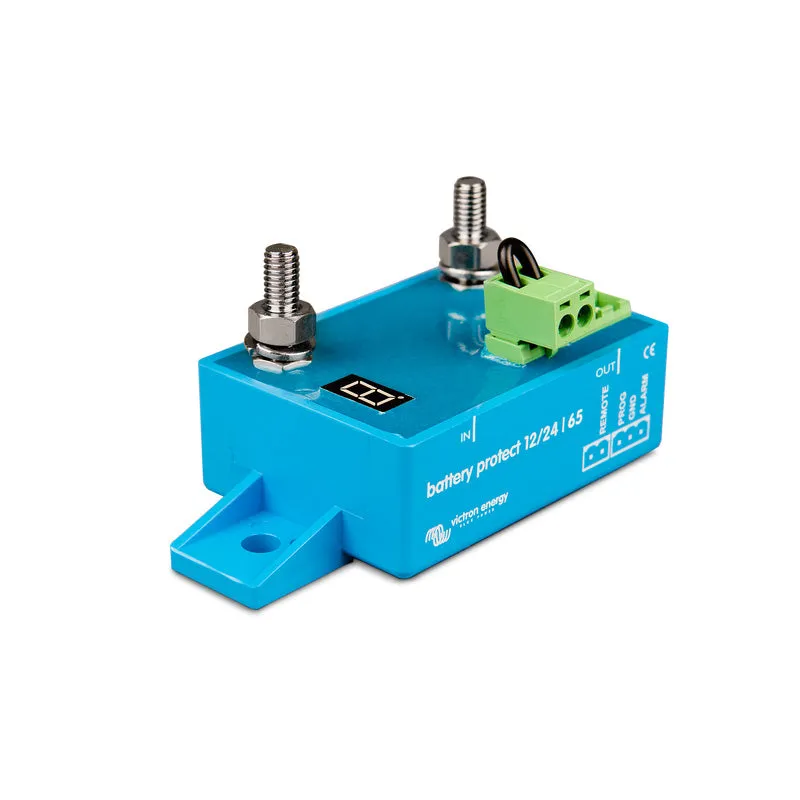

Battery Protect - BP-65

• Max. continuous load current*: 65A.
• Peak current (for 30 seconds): 250A.
• Operating voltage range: 6 –35V.
• Current consumption: When on 1,5 mA When off or low voltage shutdown: 0,6 mA.
• Alarm output delay: 12 seconds
• Maximum load on alarm output: 50 mA (short circuit proof).
• Load disconnect delay: 90 seconds (immediate if triggered by the VE. Bus BMS).
• Load reconnect delay: 30 seconds.
• Default thresholds: Disengage (10,5V or 21V); Engage (12V or 24V).
• Operating temperature range: Full load (-40°C to 40°C) (up to 60% of nominal load at 50°C)
• IP rating: Electronics (IP67) (potted) Connections (IP00).
• Connection: M6.
• Weight: 0,2 kg.
• Dimensions (hxwxd): 40 mm x 48 mm x 106 mm.
• 5 year warranty
